The Comprehensive Technical Guide to Sub-Zero Power Failure Recovery

The Comprehensive Technical Guide to Sub-Zero Power Failure Recovery

If a Sub-Zero is completely dark, treat it as a true power-path problem (supply, receptacle, cord, internal power supply). If the display is on but temperatures rise, treat it as a “cooling disabled / cooling not running” problem (modes, zone disable, controls, sealed-system start path). Sub-Zero explicitly warns that GFCI/AFCI protection can interrupt operation and is generally not recommended for most indoor units. (Sub-Zero Wolf)

I. Introduction: The Architecture of Sub-Zero Power Systems

The Luxury Standard (dual refrigeration, not “one box”)
Sub-Zero’s “dual refrigeration” concept is about maintaining separate environments so fresh-food humidity and freezer dryness are controlled independently. This matters during recovery because “power restored” does not always mean “both environments are actively being controlled.” (Sub-Zero Wolf)

Defining “No Power” (two different failure categories)

• Dark Unit (total loss): no display, no interior lights, no response to keys. This is a primary power-path problem.
• Non-cooling with power present: display/lighting works, but compressors/fans don’t run or cooling is disabled. This is often mode/logic/start-path related (including Showroom Mode or zone disable). (Sub-Zero Wolf)

Scope

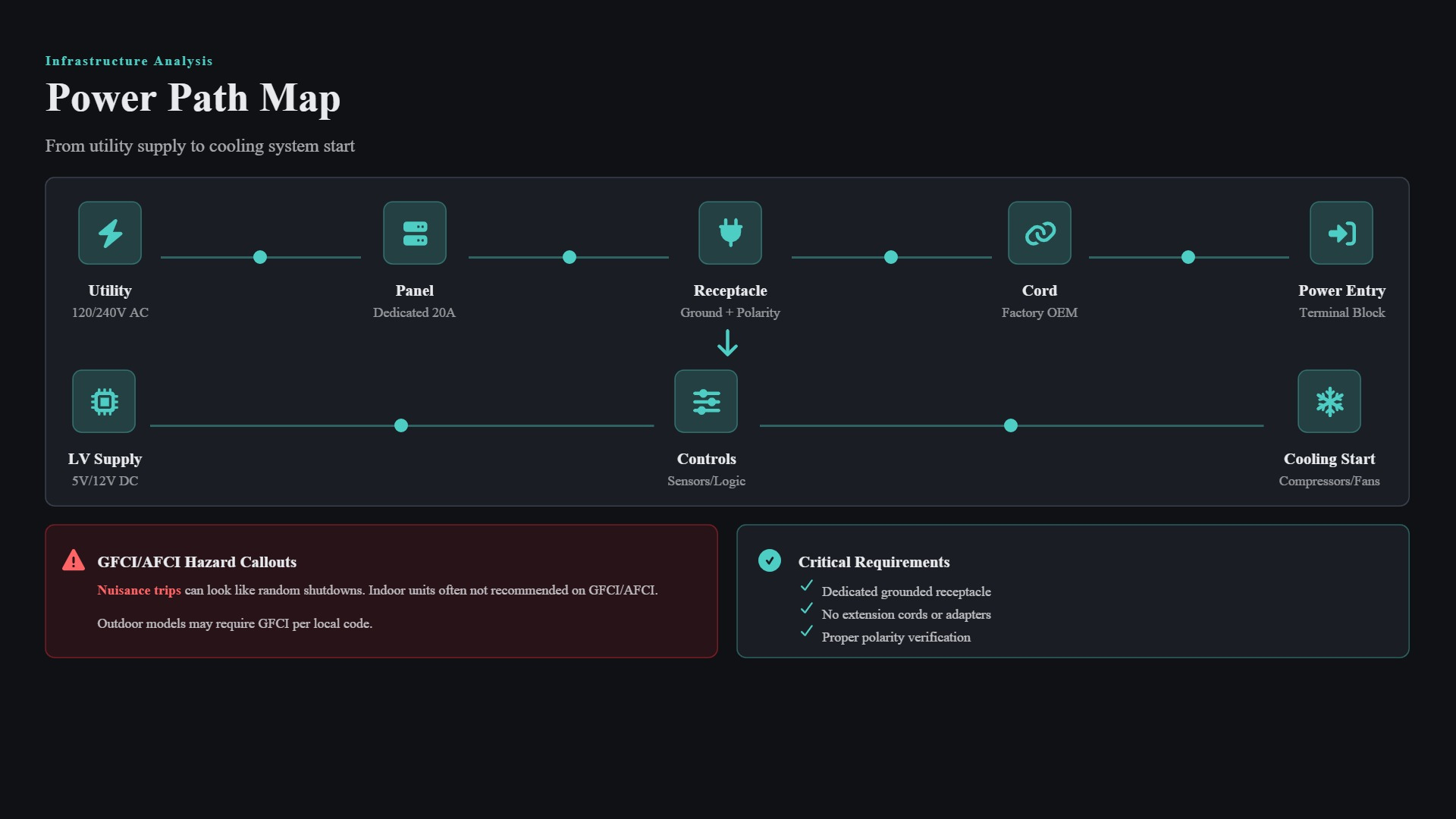

This guide tracks the diagnostic path from the home’s branch circuit through the product’s power entry and into control logic—then draws a hard line on what’s homeowner-safe vs. technician-only.

II. Residential Infrastructure & Electrical Prerequisites

Voltage and circuit requirements (baseline)
Most Sub-Zero indoor refrigeration installation guides specify: 115 VAC, 60 Hz, 15 amp dedicated circuit, and a 3-prong grounding-type receptacle. Treat that as the default, but verify against your model’s installation guide. (Sub-Zero Wolf)

Grounding, polarity, and “don’t cheat the cord”
Sub-Zero documentation repeatedly calls out proper grounding and correct polarity verification by a qualified electrician, and warns against extension cords/adapters or removing the ground prong. (Sub-Zero Wolf)

The GFCI / AFCI conflict (why it shows up as “mysterious power loss”)
Sub-Zero states that putting the unit on GFCI or AFCI protection is not recommended and may cause interruption of operation. In practice, nuisance trips can look like random shutdowns or “won’t come back after outage.” (Sub-Zero Wolf)

Important exception (outdoor units)
Sub-Zero’s design documentation notes that for certain outdoor models, GFCI is required to reduce shock risk. That’s a different rule set than typical indoor built-in refrigeration. (Sub-Zero Wolf)

Surges, generator events, and “won’t restart after outage”
Sub-Zero says their products do not include an internal surge protector, and also notes that a surge protector, AFCI, or GFCI may prevent power from being restored after an outage—leaving the unit off until the upstream device is reset. (Sub-Zero Wolf)

III. Primary Power Entry & Initial Diagnostics (fastest path first)

Safety stop conditions (do not troubleshoot)
Stop and call an electrician or service immediately if: burning smell, visible arcing, repeated breaker trips, outlet heat discoloration, or a breaker that will not reset.

1) Establish whether the problem is “house power” or “unit power”

• Plug a known-good load (lamp/charger) into the same receptacle.
• If the receptacle is dead, correct the branch circuit problem first (breaker/GFCI upstream).

2) Breaker reset protocol (Sub-Zero’s own reset-style step)

Sub-Zero troubleshooting guidance for shutdown scenarios includes switching the home circuit breaker off for ~10 seconds and back on, then retesting operation. (Sub-Zero Wolf)

3) Rule out upstream protection devices (GFCI/AFCI) and power strips

• If the unit is on a GFCI/AFCI device and it tripped, restore power there and re-check.
• If the unit is plugged into any extension cord or power strip, remove it (proper receptacle only). Sub-Zero advises against extension cords for their products. (Sub-Zero Wolf)

If the unit trips a GFCI
Sub-Zero explicitly states customer troubleshooting advice is not available for a Sub-Zero that trips a GFCI, and directs owners to factory certified service. (Sub-Zero Wolf)

4) Confirm the unit isn’t simply “turned OFF” at the controls

On Classic (formerly Built-In) units, when power is off via the control panel, “OFF” appears—which is different from a dead display. (Sub-Zero Wolf)

5) Legacy master power switch (specific models)

Some 500 Series units (example: model 590) have a master power switch behind the top grille. Sub-Zero notes access requires grille/inner panel removal—if you’re not comfortable doing that without damage, treat it as a service task. (Sub-Zero Wolf)

IV. The Electronic Control System (“the brain”)—what “dark” often means

What the control system is doing (conceptual, not model-specific)
A Sub-Zero control system typically takes line power and creates low-voltage DC for logic, sensors, and display. If the low-voltage supply fails, the unit can be fully dark even when the receptacle is live.

Practical diagnostic implication

• Live receptacle + dark unit → power supply/control board/wiring fault is likely.
• This is technician territory (internal access, isolation testing, and safe handling).

Board-level visual clue (technician-only)
Bulged or leaking capacitors on a power-supply section can be consistent with board failure—but confirmation requires safe disassembly and proper test methods.

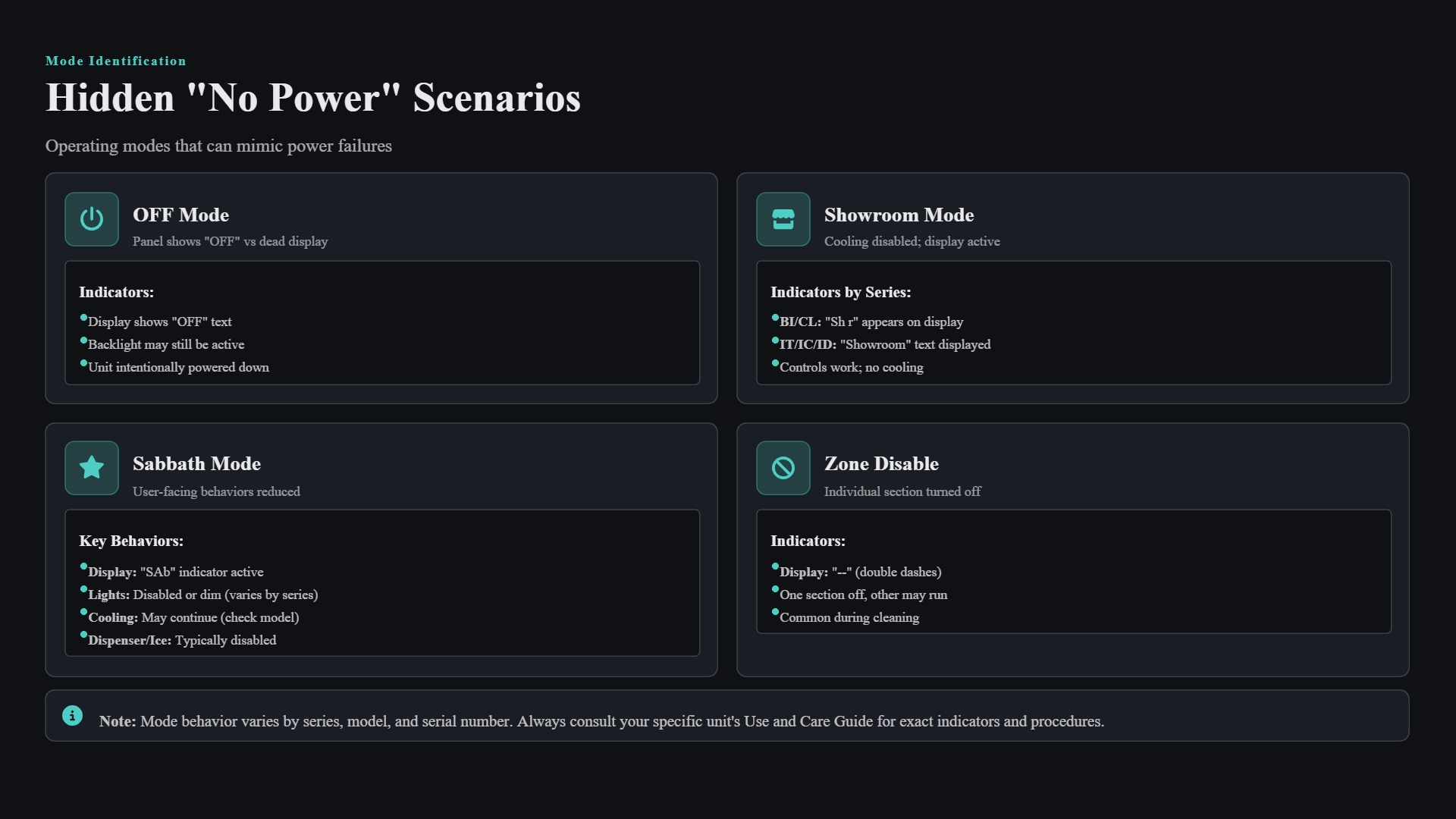

V. Specialized Operational Modes (Hidden “No Power” Scenarios)

These modes create “looks dead / not cooling” complaints without a true supply failure.

Sabbath Mode (commonly mistaken for “unit died”)
Sub-Zero explains that Sabbath Mode disables user-facing behaviors (e.g., ice maker system, door alarm, lighting behavior depending on model) while normal cooling may still occur. If lights/alarms are “dead” but temperatures are holding, check for Sabbath Mode. (Sub-Zero Wolf)

Compliance guidance is tied to Star-K documentation and model-specific instructions. (Sub-Zero Wolf)

Showroom Mode (cooling disabled, controls look normal)
Sub-Zero states Showroom Mode disables cooling while lighting/controls work for display. On certain Classic (CL) units, “Showroom” appears on the control panel; on some Classic (BI) units, “Sh r” appears in the display sequence. (Sub-Zero Wolf)
Sub-Zero also notes some units will return to Showroom Mode after a power outage, creating “power failure recovery” confusion. (Sub-Zero Wolf)

Manual Zone Disable (looks like a dead section)
On some 700 Series units, a zone can be disabled and will show “--” instead of a temperature; lights can remain on while cooling functions for that zone are disabled. (Sub-Zero Wolf)

VI. Advanced Component Troubleshooting (professional workflow)

Hard line
If the diagnostic path requires internal access, continuity checks, or any live-voltage work: stop and use a trained technician.

Technician-only: multimeter protocols (power removed)

• Confirm the branch circuit and receptacle first (avoid chasing internal faults when supply is unstable).
• With the unit safely de-energized and accessed per the service literature, test continuity across any inline fusing/thermal protection elements that feed the control power supply.
• If the low-voltage supply is absent but line power is present at the entry point, suspect the internal power supply section/control board.

Variable-speed compressor / inverter context (model-dependent)
Some Sub-Zero 700-3 tall freezer models are documented as having a variable speed compressor, which implies inverter-driven operation and an additional potential failure node in the start/power path.

Harness integrity (open circuits)
If the unit intermittently dies or recovers with vibration/door movement, suspect harness/connectors—diagnosis requires internal inspection and proper strain-relief/connector checks.

VII. Series-Specific Failure and Behavior Notes (only what’s confirmable)

Classic Series (BI and CL)

• BI: Showroom Mode can present as “Sh r” during the startup/indicator sequence. (Sub-Zero Wolf)
• CL: “Showroom” appears on the control panel; Sub-Zero notes return-to-showroom behavior after outages. (Sub-Zero Wolf)

Integrated / 700 Series

• Showroom activation/deactivation varies by model and serial number; Sub-Zero notes that some configurations require a service technician to rewire to enable/disable Showroom Mode. (Sub-Zero Wolf)
• Manual Zone Disable produces “--” for the disabled section. (Sub-Zero Wolf)

Legacy 500 Series (master switch example)
Some models include a master power switch behind the grille (example: 590). Access and procedure are model-specific. (Sub-Zero Wolf)

VIII. Professional Repair vs. DIY Thresholds

DIY boundary (reasonable)

• Breaker/receptacle verification
• Eliminating extension cords/power strips
• Recognizing Sabbath/Showroom/Zone Disable indicators
• Cleaning condenser (maintenance)

Technician boundary (do not DIY)

• Dark unit with confirmed live receptacle
• Repeated trips on GFCI/AFCI
• Any internal access, board diagnosis, harness repair, inverter/variable-speed compressor troubleshooting
  Sub-Zero explicitly routes some situations directly to factory certified service (e.g., GFCI tripping; certain showroom-mode cases). (Sub-Zero Wolf)

Warranty navigation (what’s typically covered)
Sub-Zero publishes residential warranty documents with the familiar structure (full coverage period + sealed system coverage tiers). Coverage terms vary by product line and installation context, so the correct move is: identify model/serial, then read the current warranty PDF for that product. (Sub-Zero Wolf)

IX. Prevention and Power Conditioning

Use the correct electrical setup (prevents “false power failures”)

• Dedicated, grounded receptacle as specified for your model. (Sub-Zero Wolf)
• Avoid extension cords entirely; Sub-Zero warns they should not be used and can cause damage. (Sub-Zero Wolf)

Surge protection: what Sub-Zero actually says

• No built-in surge protector; boards are described as durable, and “typically” surge protection is not required. (Sub-Zero Wolf)
• However, Sub-Zero also warns that certain protective devices (surge protector/AFCI/GFCI) can prevent automatic restoration after outages; in storm-heavy areas, consult an electrician for the best setup. (Sub-Zero Wolf)

Condenser cleaning (reduces load, prevents performance problems)
Sub-Zero recommends cleaning the condenser on a schedule (commonly stated as every 6–12 months, more often with pets), and warns that failure to clean can contribute to temperature loss or mechanical failure/damage. (Sub-Zero Wolf)

X. Conclusion & Resource Directory

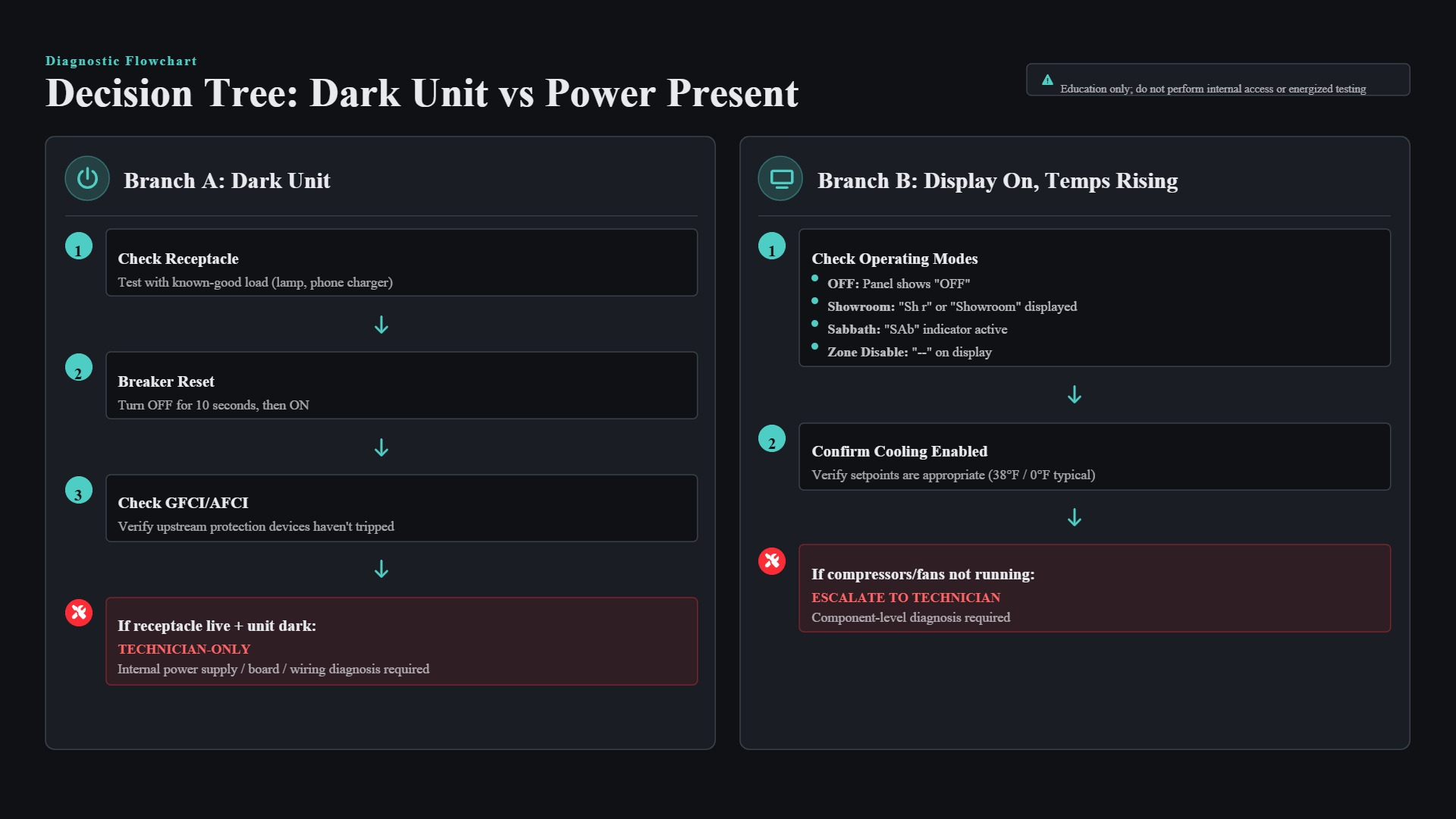

Diagnostic path (compressed)

1. Classify: Dark Unit vs Power present but not cooling.
2. Verify receptacle power and breaker behavior; eliminate upstream protection complications. (Sub-Zero Wolf)
3. Check control indicators: “OFF”, “Showroom/ Sh r”, “--” zone disable, Sabbath behavior. (Sub-Zero Wolf)
4. If receptacle is live and the unit is dark: stop—internal diagnosis is required.

Official Sub-Zero references used in this guide

• Circuit breaker tripping / no power guidance. (Sub-Zero Wolf)
• Electrical requirements and GFCI “not recommended” language in installation/design documentation. (Sub-Zero Wolf)
• Sabbath Mode explanations and model examples. (Sub-Zero Wolf)
• Showroom Mode behavior and identification cues. (Sub-Zero Wolf)
• Extension cord prohibition. (Sub-Zero Wolf)
• Condenser cleaning guidance and recommended intervals. (Sub-Zero Wolf)
• Internal surge protector and generator/outage considerations. (Sub-Zero Wolf)
