Bosch Dryer DR Code: Door or Drain Problem?

What DR means on a Bosch dryer

The WTG86401UC manual defines DR as incomplete water drainage. Its troubleshooting table points to a blocked drain hose and the hose's connection conditions. The WTG86402UC manual gives the same meaning. On these condenser dryers, water removed from the laundry must leave through the condensate system; a drainage warning concerns that water-handling function, rather than identifying one failed component.

Bosch's general U.S. dryer-code list describes DR as a door that is not properly closed or a door-switch issue. That entry does not name the models it covers. It is not a reason to override a model manual that explicitly defines DR as drainage, or to order a door switch because another Bosch dryer uses a similar-looking display.

The complete E-Nr is the model identifier; its slash suffix can distinguish a revision. Use the instructions for that appliance, rather than treating a series label such as 300, 500 or 800 as a complete model description. A compact cabinet, a heat-pump label or a ventless installation also does not establish the meaning by itself. Older vented equipment should not automatically be assigned a condensate-pump problem.

When the warning appears adds context after the meaning is established. An immediate warning does not, on its own, prove a door fault; a warning halfway through a cycle does not prove a bad pump. If the applicable instructions remain unclear, limit checks to visible conditions and stop before internal work or parts replacement.

What you can check safely

Stop the dryer and allow hot parts to cool before these checks. Leave inaccessible hoses and connections in place; pulling out or tilting a stacked or tightly installed dryer is not a safe way to inspect them.

• Door closure: Remove laundry caught at the opening and close the door normally. Look for obvious latch damage or misalignment without forcing, slamming or adjusting the mechanism. A door that clicks shut has passed a visible closure check; it has not proved that its electrical signal is correct.
• Exterior drain hose: When the model's instructions identify a drainage warning, inspect the safely accessible hose for a kink, crushed section, sharp bend, disconnection, damage or an obvious external obstruction. A hose can be pinched behind the dryer even when the section beside it looks normal. Do not disconnect the hose from the internal sump or pump, probe into the appliance, or force a blockage through with pressure or chemicals.
• Drain outlet and connection: Look for an obstructed outlet or a hose end standing in backed-up water. The WTG86401UC installation instructions require free drainage and warn against a sealed drain opening or a submerged hose end because water can flow back. Hose height, supports and connection details must match the actual installation instructions. Leave plumbing changes and concealed connections to qualified service.
• Water collection arrangement: Some models use a collection container; others discharge through an external drain. For example, the WTG865H4UC instructions include checking whether a container needs emptying when that arrangement is used. Empty and refit a container only as directed for your model. An empty container on an externally drained installation is not evidence of a failed pump, and a dryer with no collection tank does not need a tank-emptying procedure.

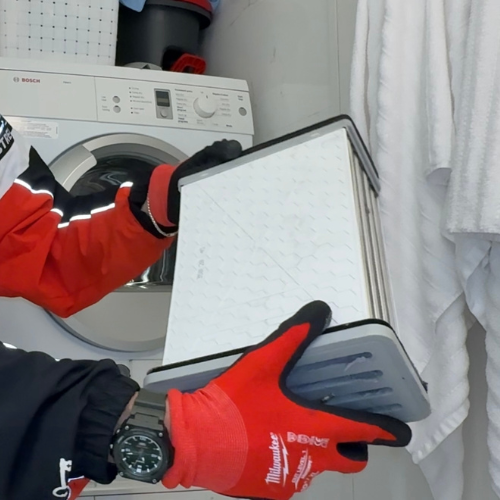

• Documented maintenance: Clean only the lint filter, removable condenser or other component assigned to owner care in the exact manual, and refit it correctly. Do not apply a removable-condenser procedure to a fixed heat exchanger or a self-cleaning design. A clean lint filter does not establish that the water route is clear. On the named WTG manuals, the lint/heat-exchanger maintenance indication and its acknowledgment instructions are separate from DR; clearing that reminder is not a drainage repair.

Judge the result after a correction

If an accessible obstruction or installation issue was safely corrected and there is no leak, damage or other stop condition, resume only as the model's normal operating instructions allow. Do not use a service menu, internal reset button or a generic power-cycle interval as a substitute for correcting the problem.

• DR stays away and the load completes normally: The corrected condition may have contributed. That result does not identify a failed part or guarantee that an intermittent problem is gone.
• The warning takes longer to return or drying improves only partly: Something changed, but the fault remains unresolved. Partial improvement does not prove that there is only a deeper blockage, or justify repeating heated cycles until the load finishes.
• DR returns unchanged: The action performed did not resolve the warning. Cleaning one hose, screen or condenser does not test every part of the water route. Bosch's drain-hose maintenance guidance directs persistent DR after the prescribed checks to service.
• A new warning or leak appears after care: Stop and check only the accessible component's documented fitting and connection. Do not keep operating to see whether the leak or interruption settles. An incorrectly refitted part is a possibility to assess, not a diagnosis from timing alone.

Hearing a pump run, or seeing some water discharge after a restart, is useful context but does not establish adequate drainage throughout the cycle. Repeated restarts can conceal the condition instead of resolving it.

If DR began after moving or repair work

After moving, stacking or reinstalling a dryer, the external hose may be crushed, bent sharply, disconnected or inserted into a drain arrangement that allows water to return. Door seating may also have changed. Check only what is visible without moving the appliance again. A newly created installation problem deserves attention before assuming that the move caused an internal component failure.

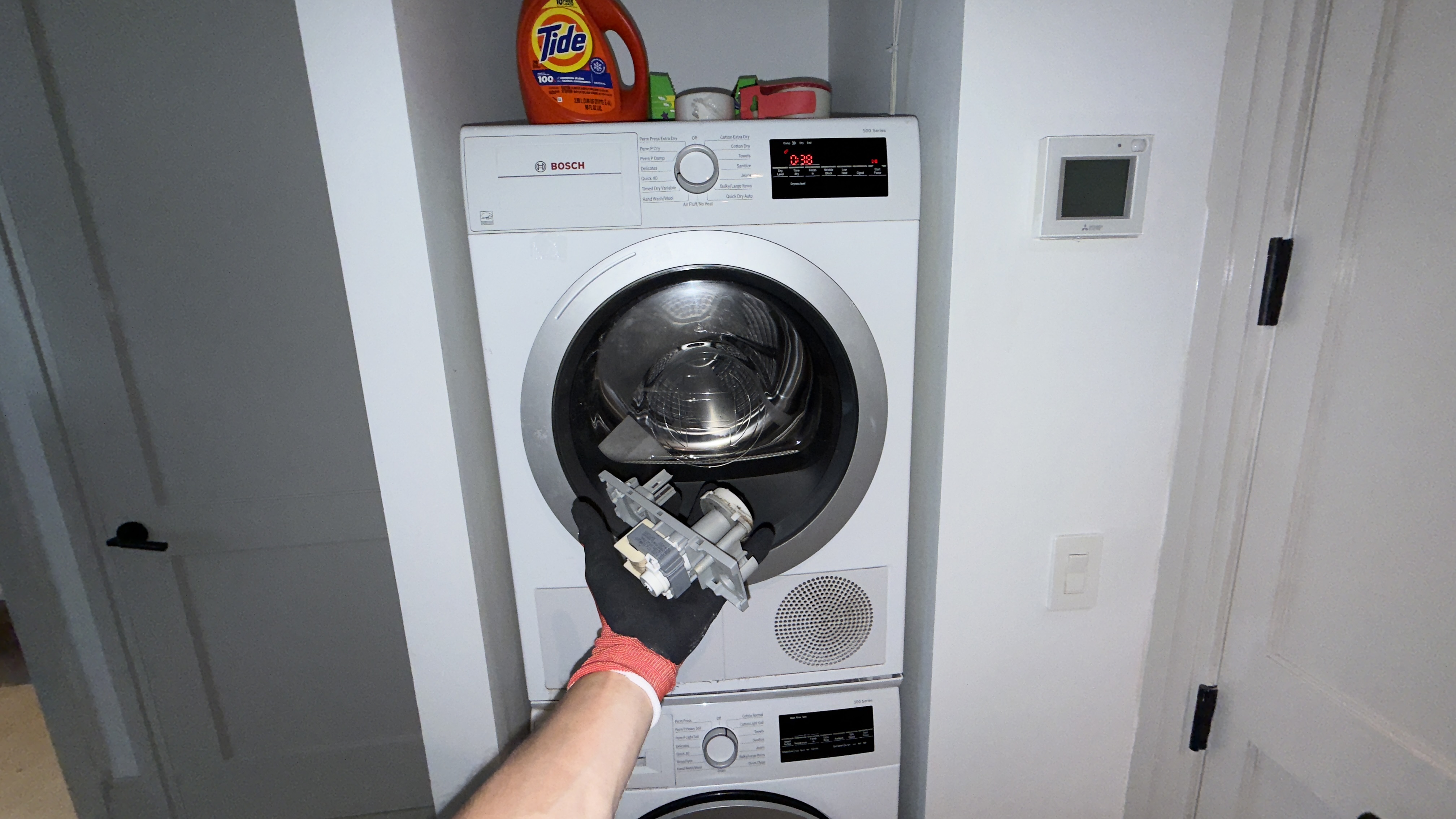

If a pump has already been replaced, continued DR does not prove that the control board is bad. The installed water route, correct pump fit, connections and actual performance still need verification. Prior work may also leave a small internal hose or tube incorrectly seated, but checking that requires qualified access. A new pump, a clean condenser or a replacement laundry-moisture sensor is not proof that condensate drainage and water-level recognition are working correctly.

Other messages that should not be confused with DR

• Check drain: The WTB86202UC manual uses this wording for an incomplete-drainage condition and directs checks of the hose and connection. Similar water-handling language does not make every model's controls or recovery procedure interchangeable.
• E03: Bosch's general U.S. E03 explanation describes a blocked or kinked condensation drainage hose. It is a separate displayed warning, and that explanation is not a universal translation for DR. Historical Bosch instructions also use E:03 in a different drying-time context, so the applicable manual still decides the meaning.
• E16: The general U.S. code list describes a door opened during drying. That is distinct from DR; do not select a drain-pump or door-switch repair merely because two entries concern a related system.

What diagnosis needs to establish

For a manual-defined drainage warning, diagnosis needs to distinguish water that is not being removed from water removal that the appliance is not correctly recognizing. The assessment should establish whether the installed discharge route flows freely without backflow, whether water can reach and leave the sump or reservoir, and whether the pump delivers under the conditions in which the interruption occurs. A brief sound or a single discharge is not the same as that functional check.

After internal work, the technician also needs to verify the pump's installation, relevant small hoses or tubes, connectors and wiring. If water clears correctly but the warning remains, the model's water-level sensing and control response need assessment. The results should determine which repair is needed before another part is selected.

If the applicable model guidance identifies a door condition, diagnosis should separate mechanical latch engagement from the switch signal, harness condition and control recognition. A visibly closed door alone cannot distinguish those functions.

When to stop

Stop using the dryer for a water leak, water reaching electrical areas, smoke or burning/electrical odor, damaged wiring or power cord, or a breaker that trips again. Do not touch wet electrical equipment or reach for a wet plug. Disconnect power only where the controls or disconnect are safely accessible from a dry location; otherwise keep clear and arrange qualified help.

Further home checks also end when the warning returns after the applicable accessible corrections, required components cannot be fitted properly, or access would require moving an unstable stack or opening the cabinet. Do not bypass the door switch or another safety device, test live voltage, open control or pump areas, or keep resetting the dryer to complete a load.

If water on the floor is the main complaint, the Bosch dryer leaking-water guide addresses possible leak locations and safe-access limits. Without a DR warning, clothes remaining damp, hot laundry that stays wet and a dryer that does not heat are different problems. A drainage code should not be assumed from poor drying alone.
